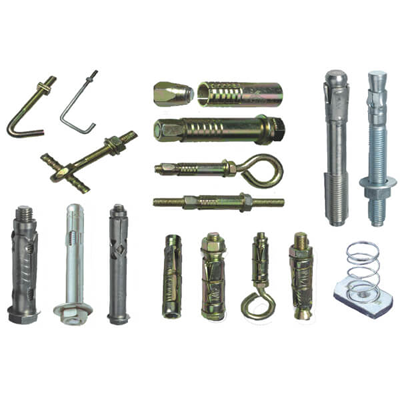

Foundation Bolt Types
Foundation bolts are essential fasteners used to secure machinery, steel structures, and heavy equipment to concrete foundations. Foundation bolts provide strong anchoring, vibration resistance, and long-term durability.
Main Types of Foundation Bolts
L-Type Foundation Bolts
These bolts have an “L” bend that grips inside concrete and prevents pull-out.
J-Type Foundation Bolts
Strong hook design gives excellent anchorage for heavy machinery and structures.
U-Type Foundation Bolts
Ideal for pipe supports, cylindrical equipment, and clamping systems.
Straight (Threaded) Foundation Bolts
Fully/partially threaded rods used with chemical anchors or grouting.
Eye Foundation Bolts
These have a circular eye for lifting, pulling, and tension applications.
Sleeve Type Foundation Bolts
Adjustable bolt systems with sleeves, used when repositioning is required.
Rag Foundation Bolts
Square/tapered ends grip inside shaped cavities; common in older industries.
Foundation Bolts Applications
- Heavy machinery installation
- Steel and industrial structures
- Pipelines & supports
- Towers, poles & PEB structures
- Power plants & equipment bases
Foundation Bolts Advantages
- High tensile strength
- Corrosion resistance
- Excellent anchorage
- Long life & stability
